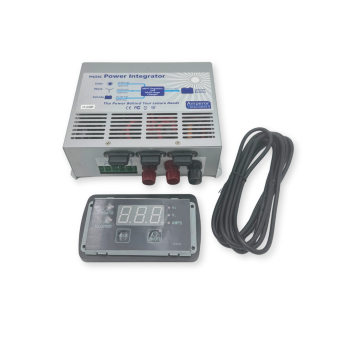

Power Intergrator and Power Display Panel
Stock Code: CLEAR364Power Intergrator and Power Display Panel
Inputs from alternator, solar and wind - The unit takes input from the vehicle alternator, solor panel and wind generator then provides the optimum output to charge a leisure battery. The unit can boost the input from the alternator to cancel the effects of poor contacts and voltage drop along the cabling, which is one of the main causes of poor charging. A one box solution means a regulator is not required for each power source, so the cost and complexity is reduced. The use of MPPT technology ensures the maximum possible power is extracted from the solar panel and wind generator, boosting output by up to 20% over traditional regulators.
Provides multi stage output for battery charging
Up to 25A output charge (battery to battery mode)
Trickle charge for starter battery up to 1A
Selector for flooded, gel and AGM batteries
Uses MPPT tech for optimum solar charging
Display/control panel included - The display panel shows the voltage, current and available power available from whichever charging source is selected, allowing you to see what is being provided by wind, solar or alternator.
Input voltage: 10-25V
Output voltage: 13.8V/14.6V.15.5V
Output current: 25A max
Standby current: 45mA
Protection:
Current limit: 26A +/- 0.5A
Short circut protection: Auto restart
Over voltage protection: 16.5V +/-0.5V Auto restart
Thermal protection: 90C +/- 5C Auto restart
Length 148 x Width 181 x Height 66mm
Weight 1.5KG
Display panel:
Current 150mA
Display panel sizing: Width 139 x Height 78 x Depth 18.5mm
Inputs from alternator, solar and wind - The unit takes input from the vehicle alternator, solor panel and wind generator then provides the optimum output to charge a leisure battery. The unit can boost the input from the alternator to cancel the effects of poor contacts and voltage drop along the cabling, which is one of the main causes of poor charging. A one box solution means a regulator is not required for each power source, so the cost and complexity is reduced. The use of MPPT technology ensures the maximum possible power is extracted from the solar panel and wind generator, boosting output by up to 20% over traditional regulators.
Provides multi stage output for battery charging
Up to 25A output charge (battery to battery mode)
Trickle charge for starter battery up to 1A
Selector for flooded, gel and AGM batteries
Uses MPPT tech for optimum solar charging
Display/control panel included - The display panel shows the voltage, current and available power available from whichever charging source is selected, allowing you to see what is being provided by wind, solar or alternator.
Input voltage: 10-25V
Output voltage: 13.8V/14.6V.15.5V
Output current: 25A max
Standby current: 45mA
Protection:
Current limit: 26A +/- 0.5A
Short circut protection: Auto restart
Over voltage protection: 16.5V +/-0.5V Auto restart
Thermal protection: 90C +/- 5C Auto restart
Length 148 x Width 181 x Height 66mm
Weight 1.5KG
Display panel:
Current 150mA
Display panel sizing: Width 139 x Height 78 x Depth 18.5mm
